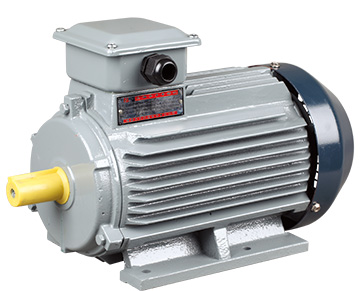

Y2E2 & Y2E3 SERIES
Three Phase Cast Iron High Efficiency Motor
RANGE OF PERFORMANCE
Frame Size: H80~H355
Rated Power Range: 0.75KW~315KW
OPERATING CONDITIONS
Ambient temperature:-15 °C ≤ θ ≤ 40 °C
Above sea level: not exceed 1000m
Rated Voltage: 380V, 220~760V is available
Rated Frequency: 50HZ or 60HZ
Insulation Class: Class F/H
Protection Class: IP55/56
Duty: S1
Protection Class: IP55/56
Duty:S1
  • Features

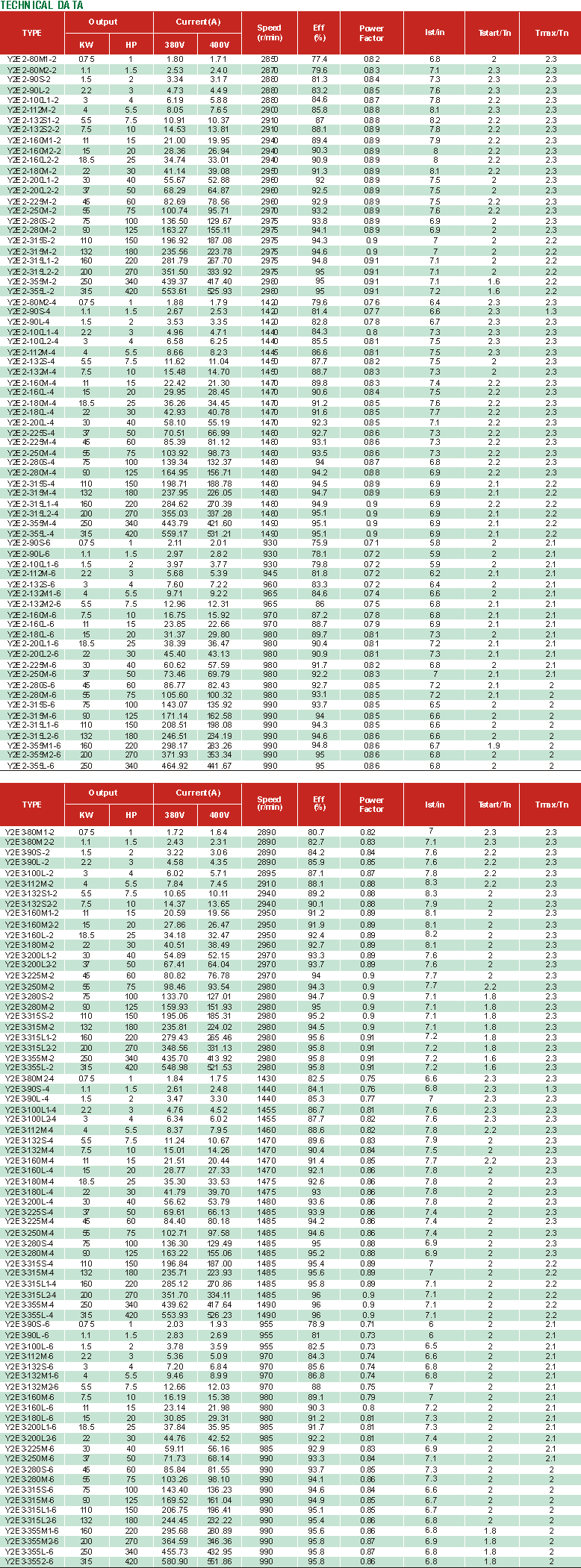

  • Technical data
  • Download
  • INTRODUCTION

    Y2E2 & Y2E3 Three phase cast iron high efficiency motor are the high efficiency motors designed according to the efficiency classification of IEC60034-30. It has good performance in energy saving.

    Features: High efficiency, energy saving, fine operation performance, small vibration, low noise, long service life, high reliability, convenient maintenance, big breakaway torque.

    Applications: Machine tools, ventilators, pumps, reducers, packing machine, washing machine, agricultural and food processing machine, mining equipment, construction equipment and etc.




  •

  • Y2E2 & Y2E3 SERIES (PDF|-186.8KB)
