Y2 SERIES

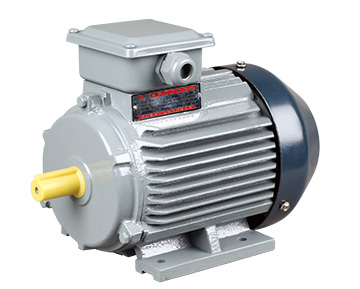

Three Phase Cast Iron Housing Motor
RANGE OF PERFORMANCE
Frame Size: H80~H160
Rated Power Range: 0.75 KW ~ 18.5 KW
OPERATING CONDITIONS
Ambient Temperature: -15℃≤ θ ≤ 40℃
Above Sea Level: not exceed 1000m
Rated Voltage: 380V, 220V~760V is available
Rated Frequency: 50Hz or 60Hz
Insulation Class: Class F/H
Protection Class: IP55/56
Duty:S1
  • Features

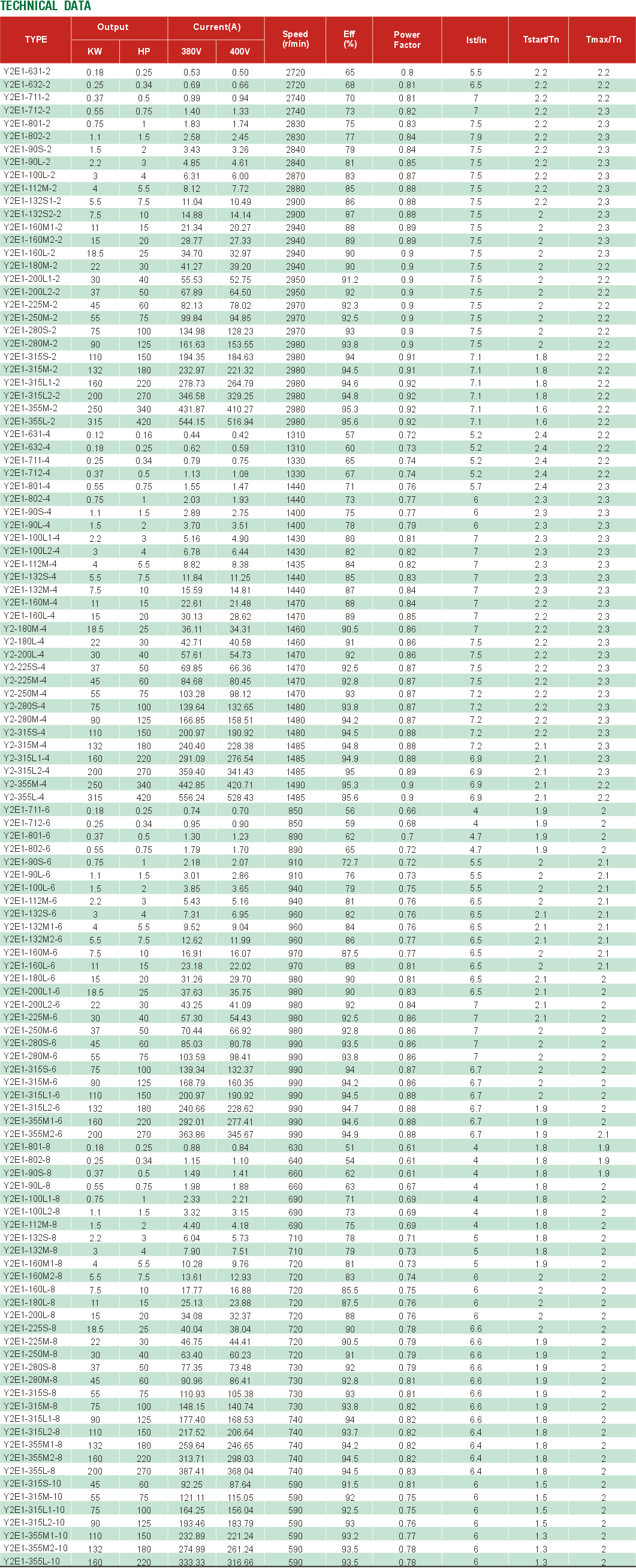

  • Technical data
  • Download
  • INTRODUCTION

    Y2 Three phase induction motor, adopting the national unified design, has reached the international advanced level of 90’s.It is newly designed in conformity with the relevant requirements of IEC standards.

    Features: High efficiency, energy saving, fine operation performance, small vibration, low noise, long service life, high reliability, convenient maintenance, big breakaway torque.

    Applications:Machine tools,blowers,water pumps,compressors,transporters, agricultural and food processing etc.




  •



  • Y2 Series (PDF|-199.5KB)
