MS SERIES

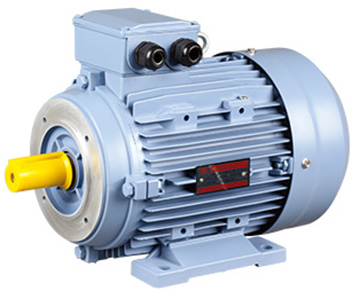

Three Phase Aluminum Asynchronous Motor
RANGE OF PERFORMANCE
Frame Size: H80-H160
Rated Power Range: 0.75 KW ~ 18.5 KW
OPERATING CONDITIONS
Ambient Temperature: -15℃≤ θ ≤ 40℃
Above Sea Level: not exceed 1000m
Rated Voltage: 380V, 220V~760V is available
Rated Frequency: 50Hz or 60Hz
Insulation Class: Class B/F/H
Protection Class: IP54/55/56
Duty:S1
  • Features

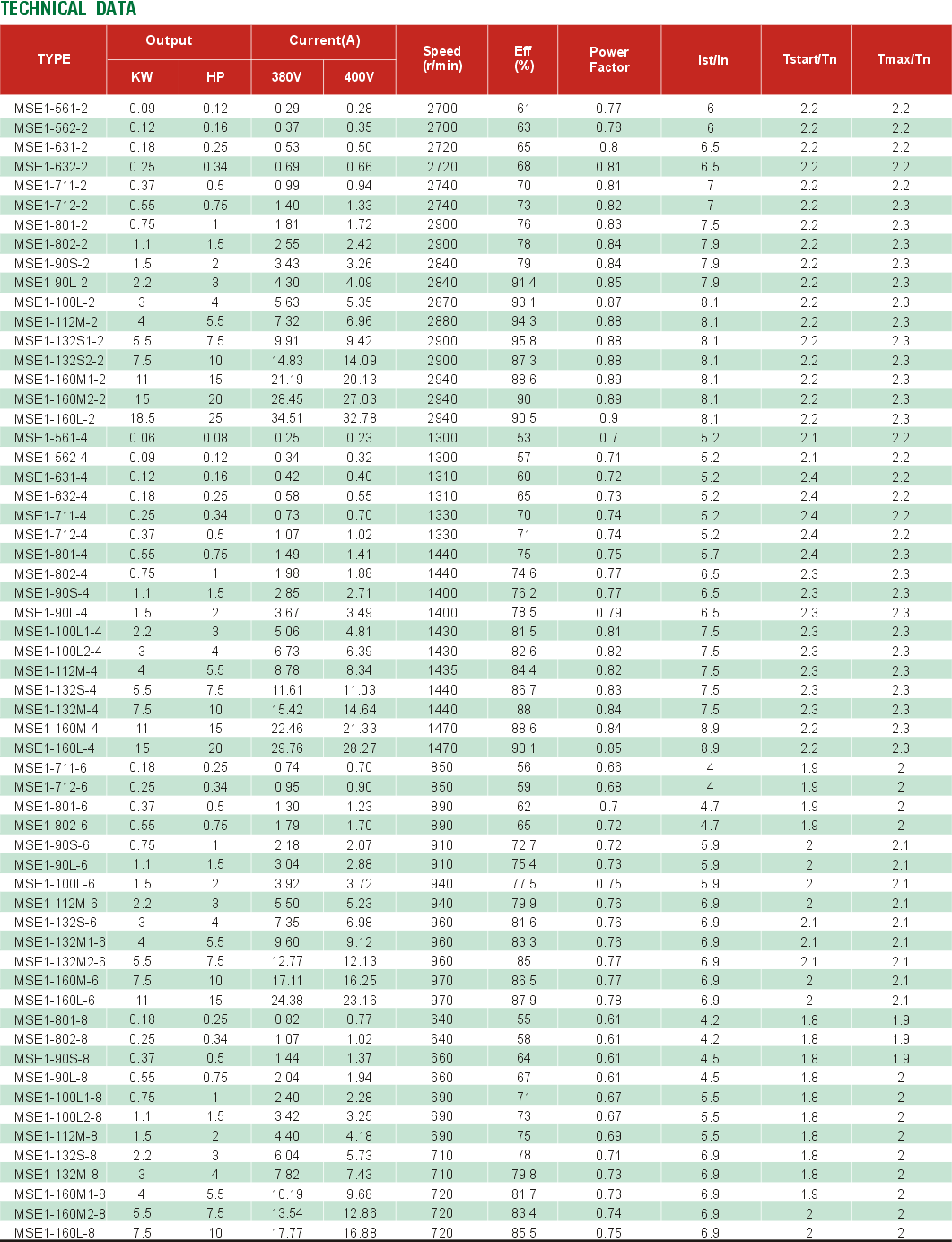

  • Technical data
  • Download
  • INTRODUCTION

    MS series aluminum housing three phase asynchronous motor, with the latest design in entirety, is made of quality materials and conformed to IEC standard. It can be used for general drive.

    Features: low noise,slight vibration,light weight,simple construction,good appearance and etc.

    Applications: air-compressor, pump,blower, medical apparatus and instruments, small machines, etc.

  •



  • MS SERIES (PDF|-1.2MB)
