YL SERIES

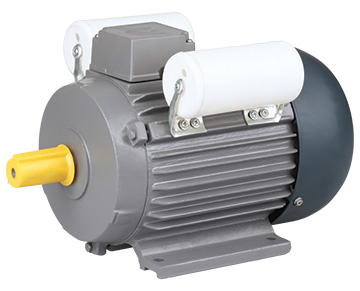

Single Phase Cast Iron Dual Capacitor Motor
RANGE OF PERFORMANCE
Frame Size: H71~H112
Rated Power Range: 0.37KW ~ 3.7KW
OPERATING CONDITIONS
Ambient Temperature: -15℃≤ θ ≤ 40℃
Above Sea Level: not exceed 1000m
Rated Voltage: 220V, 110V ~ 240V is available
Rated Frequency: 50Hz or 60Hz
Insulation Class: Class B/F
Protection Class: IP44/54
Duty: S1
  • Features

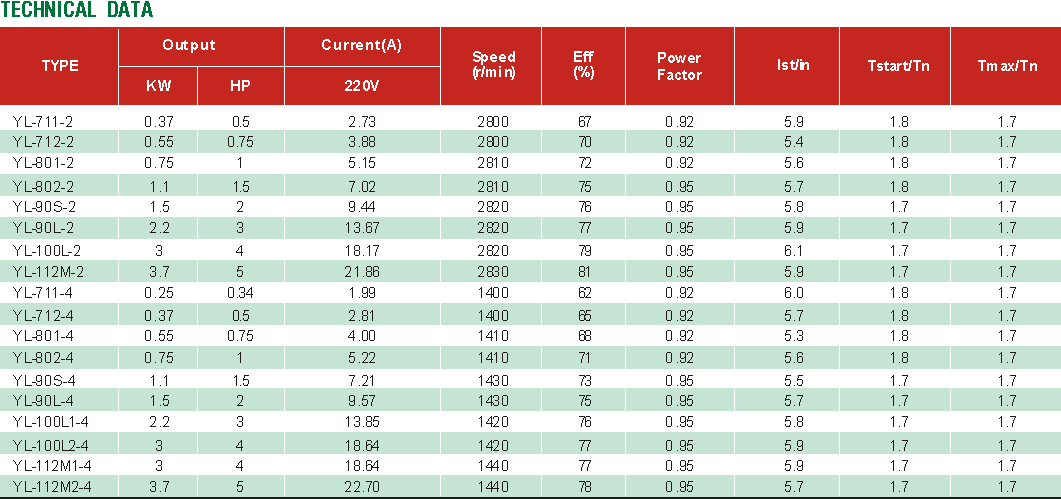

  • Technical data
  • Download
  • INTRODUCTION

    YL series single phase cast iron dual capacitor motor is designed and manufactured in according with IEC standard. It can be used as a replacement of three phase electric motor where no three phase source is available for driving small size machine equipment.


    Features: quite operation, low vibration, low power consumption, simple construction


    Applications: air-compressor, pumps, fans, agriculture equipment, farming machine, building service, manufacturing industry, small machines, etc.


  •



  • YL SERIES (PDF|-913.5KB)
