ML SERIES

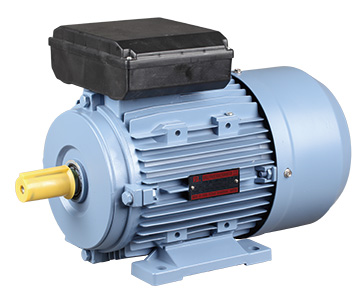

Single phase aluminum dual capacitor motor
RANGE OF PERFORMANCE
Frame Size: H71~H112
Rated Power Range: 0.37KW ~ 3.7KW
OPERATING CONDITIONS
Ambient Temperature: -15℃≤ θ ≤ 40℃
Above Sea Level: not exceed 1000m
Rated Voltage: 220V, 110V ~ 240V is available
Rated Frequency: 50Hz or 60Hz
Insulation Class: Class B/F
Protection Class: IP54/55
Duty: S1
Protection Class: IP55/56
Duty:S1
  • Features

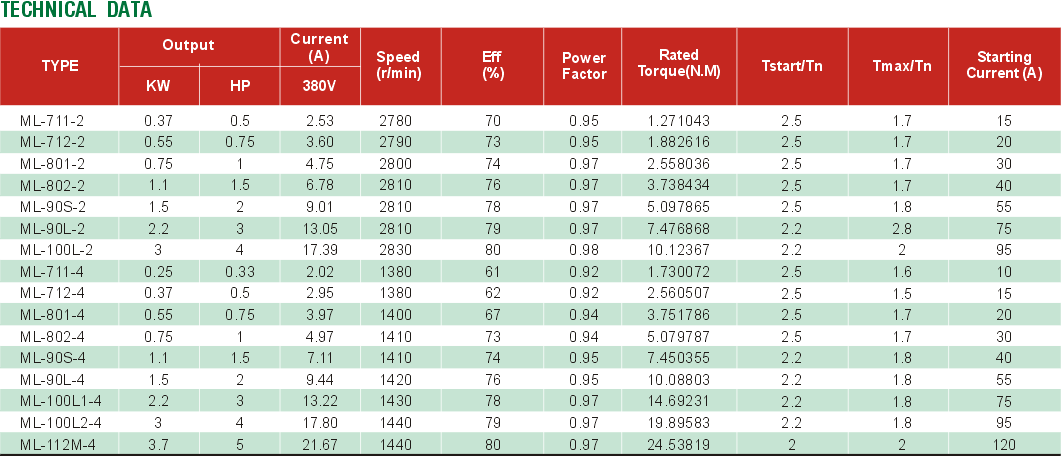

  • Technical data
  • Download
  • INTRODUCE

    ML series single phase aluminum dual capacitor motors are made of good quality material and conformed to IEC standard. It’s especially suitable for family workshops where only single phase current supply is available.

    Features: big starting torque, high over load, reliable operation, little vibration, light weight, simple construction

    Applications: air-compressor, pump, fans, medical apparatus and instruments, small machines, etc.


  •

  • ML SERIES (PDF|-112.9KB)
