MC SERIES

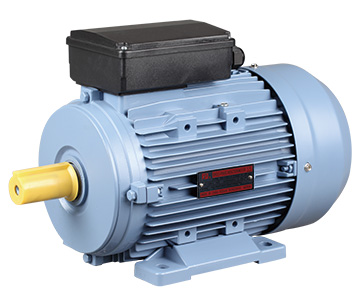

Single Phase Capacitor Start Asynchronous Aluminum Housing Motor
RANGE OF PERFORMANCE
Frame Size: H71~H112
Rated Power Range: 0.18KW ~ 3KW
OPERATING CONDITIONS
Ambient Temperature: -15℃≤ θ ≤ 40℃
Above Sea Level: not exceed 1000m
Rated Voltage: 220 V, 110V~240V is available
Rated Frequency: 50Hz or 60Hz
Insulation Class: Class B/F
Protection Class: IP54/55
Duty:S1
  • Features

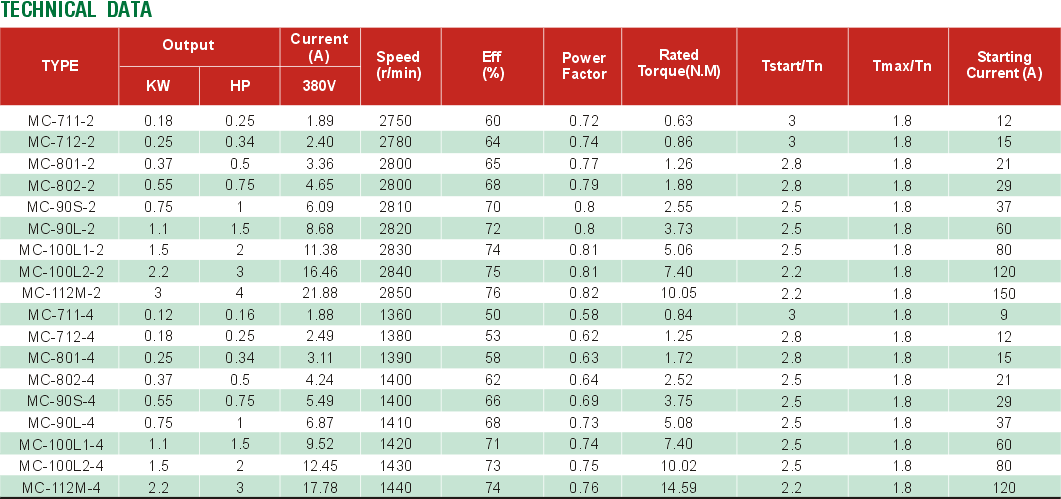

  • Technical data
  • Download
  • INTRODUCE

    MC series are conformed to IEC standard and made of selected quality materials. The starting torque of the motor is 2-3 times as rated torque. It’s good utility for family workshop where only single phase power is available.

    Features: high starting torque, low temperature-rise, low noise, slight vibration, light weight, simple construction, good appearance and etc.

    Applications: small machine tools, pumps, refrigerators and many other machine that need full-load start.


  •





  • MC SERIES (PDF|-978.6KB)
